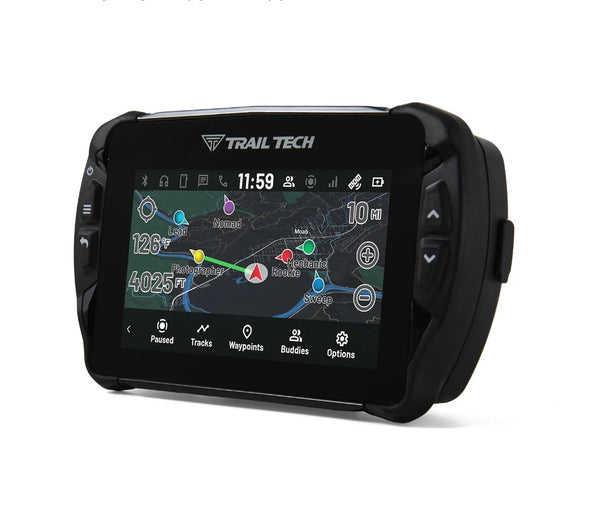

Voyager Pro 4 Now Available! Voyager Pro4 is Trail Tech's dedicated off-road GPS display for side-by-sides, snowmobiles, dirt bikes, dual-sports, and adventure motorcycles. It puts Buddy Tracking, mapping, ride data, Bluetooth, and machine-specific install hardware into three kits for UTV, SNOW, and MOTO riders.
What’s new
Larger Screen
The 4.3 in display combines GPS mapping, vehicle information, ride logging, and on-dash data in one dedicated off-road screen. VP4 supports GPX, GeoPDF, and Raster MBTiles, stores maps and routes on 32 GB of internal memory plus microSD up to 64 GB, and pairs over Bluetooth 5.1 to a compatible phone and headset for music controls, calls, and text alerts.
Buddy Tracking & Buddy Tails Improvements
Clearer rider direction, better group movement awareness, and improved at a glance visibility during group rides.
Compatible with mixed-machine groups
Voyager Pro4 is a Trail Tech display that helps bring more vehicles into the group-ride. It takes more than one to make a group ride: A UTV may be leading. A snowmobile may be out front. A motorcycle may be scouting a route. A support rig may be hanging back. VP4 gives those machines a dedicated display with Buddy Tracking, mapping, and ride data, and it can participate in groups with compatible Polaris RIDE COMMAND Group Ride vehicles.
Map files for normal rides and technical users
For most riders, that covers the basics: record a ride, save it, export it, and load tracks back onto the device. For technical users, VP4 also supports custom offline map workflows. Riders can import GPX files, work with georeferenced GeoPDF overlays, and load compatible Raster MBTiles packages for offline reference layers. Available space for custom maps is typically about 2 GB with the default maps installed. If the default maps are replaced, available space for custom maps can increase to about 20 GB.
Key Specs Summary
- 4.3 in WQVGA display with 1000 nit brightness
- NXP i.MX 6 dual-core applications processor
- u-blox MAX-M10S concurrent multi-GNSS receiver with GPS, GLONASS, Galileo, and BeiDou support
- Plastic quick-release docking station with motorcycle mounting hardware
- 9-16 V DC external power plus internal 3.7 V 3100 mAh Li-ion backup battery
- IP67 environmental rating, Bluetooth 5.1, and microSD support up to 64 GB
- Sub-GHz Buddy Tracking for up to 20 riders, no cell service required, compatible with Polaris RIDE COMMAND Group Ride vehicles
Core Device Specifications
- Head Unit Part Number: 9205-R2
- Display Type: 4.3 in WQVGA TFT LCD, landscape orientation
- Touchscreen Type: Projected capacitive touchscreen
- Display Resolution: 480 x 272 px
- Screen Brightness: 1000 nit
- Application Processor: NXP i.MX 6 dual-core applications processor
- CPU Architecture: Dual-core Arm Cortex-A9
- System Memory: 8 Gb RAM
- Internal Memory: 32 GB
- External Memory Support: microSD up to 64 GB
- External Power Input: 9-16 V DC
- Internal Battery: 3.7 V 3100 mAh Li-ion
- Power Draw, Shutdown: 0 W
- Power Draw, Sleep: 100 mW
- Power Draw, Low: 1.2 W
- Power Draw, Max: 2 W
- Battery Life, Typical Use: 2 hours
- Battery Life, 100% Backlight: 45 minutes
- Battery Charge Time: 6.5 hours
- Charge Temperature Range: 16-45 degrees C (60.8-113 degrees F)
- Environmental Rating: IP67
- Operating Temperature: -10-45 degrees C (14-113 degrees F)
- Storage Temperature: -10-45 degrees C (14-113 degrees F)
- Temperature Display Range: -10-210 degrees C (14-410 degrees F)
- Physical Dimensions: 144 x 90 x 47 mm (5.67 x 3.54 x 1.85 in)
- Physical Weight: 410 g (0.90 lb)
- Mounting Pattern: AMPS 30 x 38 mm
- Dock Style: Hard mount with quick-release
- Certifications / Standards: IP67; FCC; IC; CE
GNSS, Mapping & Recording
- GNSS Chipset: u-blox MAX-M10S
- GNSS Receiver Type: Concurrent multi-GNSS receiver
- Supported Constellations: GPS, GLONASS, Galileo, BeiDou
- GPS Accuracy: 1.5 m
- GPS Update Rate: 10 Hz
- Speed Range: 0-320 km/h
- Distance Range: 0-999,999 km
- Elevation Range: up to 9,000 m
- Accumulated Runtime: 0-99,999 hr
- GPS Record Rate Options: 1, 2, 5 sec / 1, 5, 10 m
- Supported File Types: GPX, GeoPDF, Raster MBTiles
Onboard File Support
- GPX Recording & Export: View your actively recording track on the device and save or export recorded rides as GPX files, including waypoints.
- GPX Import: Import previously exported GPX files or compatible custom GPX files created with route-planning tools.
- GeoPDF: Import georeferenced single-image map overlays. Technical users can create GeoPDFs in GIS software or export them from services that support geospatial PDF maps.
- Raster MBTiles: Import compatible raster MBTiles map packages. Files must be prepared as a single raster layer. MBTiles packages can bundle multiple zoom levels into one offline map for higher detail as you zoom in.
- Custom Map Storage Note: Available space for custom maps is typically around 2 GB with the default maps installed. If the default maps are replaced, available space for custom maps can increase to approximately 20 GB.
Buddy Tracking & Group Ride
- Buddy Tracking Technology: Private rider-to-rider location network using radio signals and GPS
- Group Capacity: Supports up to 20 riders in a single group
- Cell Service Requirement: Not required
- Network Behavior: Riders in the group can pass location updates along, helping dispersed riders stay connected
- Typical Buddy-to-Buddy Range: Approximately 0.5-1.5 miles
- Range Note: Range improves with line of sight and fewer obstructions; terrain, installation, and environmental conditions affect real-world results
- Required Hardware: External V2V antenna required and included in kit
- Antenna Mounting Guidance: Mount the V2V antenna vertically for best performance
- Compatible Group Ride Systems: Buddy Tracking groups are compatible with Polaris RIDE COMMAND Group Ride vehicles
- Buddy View: Shows group members on the map screen with name and location
- Buddy Features: Buddy Tracking, Buddy Tails, Navigate to Buddy, Buddy Beacon
- Buddy Beacon Note: Group-alert / regroup feature only; not a rescue beacon
Wireless, Audio & Interfaces
- Bluetooth Version: 5.1
- Bluetooth Profiles / Functions: HSP, HID
- Bluetooth Phone / Headset Pairing: Music controls, calls, and text alerts with a compatible phone and headset
- Dock Connector to Head Unit: Gold pogo pins
- Dock Rear Harness / Sensor Stubs: 4 JST stubs
- Power Connector: Female 3-pin JST
- Buddy Tracking V2V Antenna Connector: SMB (included)
- GPS Booster Antenna Connector: SMB (sold separately)
- Wheel Sensor Connector: Male 2-pin JST (sold separately)
- Tach / Ignition Sensor Connector: Female 2-pin JST
- Temperature Sensor Connector: Female 4-pin JST
- Ambient Temperature Sensor: Integrated short-stub sensor on dock
MOTO Kit Dock, Mount & Fitment
- Dock Part Number: 9200-DOCK
- Dock Material: Plastic
- Dock Release Style: Quick-release hard mount
- Handlebar Mounting AMPS Plate: Included
- Handlebar Mounting Hardware: 9200-BKPK
- Buddy Tracking Antenna: 9200-V2V1
- Power Wire: 9000-1011 (48 in)
- Tach Sensor: 9000-1021 (70 in)
- Temperature Sensor: 7500-3000 Universal Temperature Sensor
- Intended Vehicle Type: Dirt bike / dual-sport / adventure motorcycle
- Compatibility / Fitment: Dirt bikes, dual-sport motorcycles, and adventure motorcycles with regulated 9-16 V DC power
- Mounting Type: Handlebar / AMPS hard mount

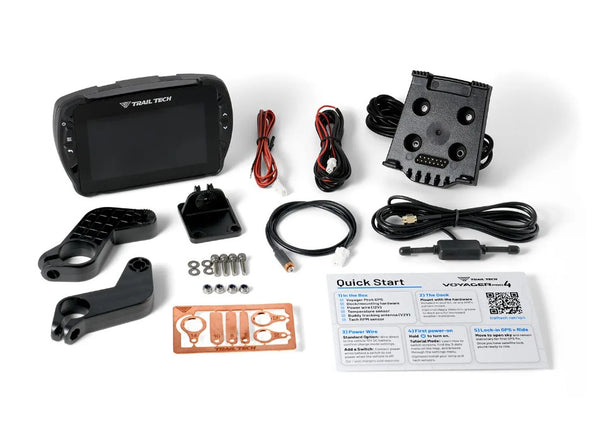

Included in the Box
Main Unit
- 9205-R2: Voyager Pro 4 Head Unit
- 9200-DOCK: Quick-Release Docking Station
Mounting Hardware
- Handlebar Mounting AMPS Plate: Included
- 9200-BKPK: Plastic Handlebar Mounting Hardware
Wiring, Antennas & Sensors
- 9200-V2V1: Buddy Tracking V2V Antenna (included)
- 9000-1011: Power Wire (48 in)
- 9000-1021: Tach Sensor (70 in)
- 7500-3000: Universal Temperature Sensor
Small Parts & Extras
- 010-TTKC: Trail Tech Keychain
- TTST-165-BK: Trail Tech Sticker
Documentation
- 010-ELV-VP4: Quick-Start Postcard
Generic kit that might require moving the headlight/number plate forward but does work with the stock speedo sensor connection.
Trail Tech Beta Voyager Pro 4 GPS Kit
Produced by Trail Tech of USA
